Keycloak

Docker

docker run --name keycloak -e KEYCLOAK_USER=admin -e KEYCLOAK_PASSWORD=letmein -p 8443:8443 jboss/keycloak

Browse to: https://localhost:8443/auth

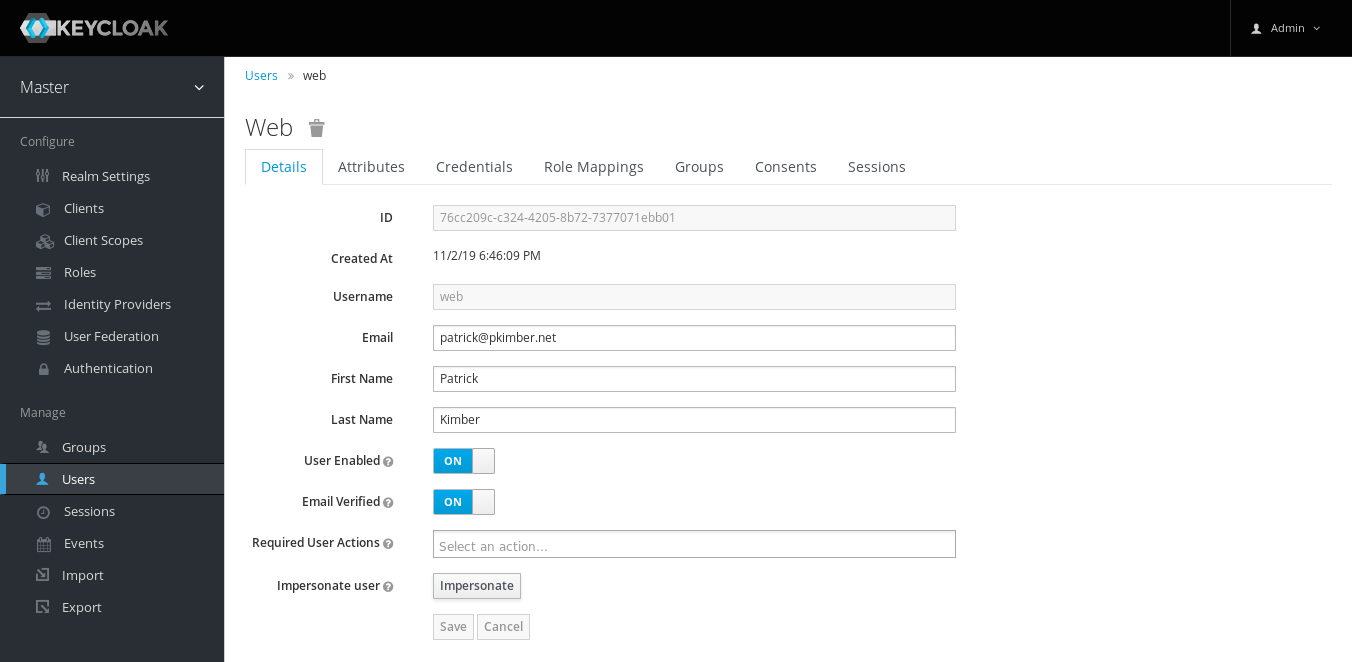

To add a user (cannot find a way to add the email address):

docker exec 5be9949528f4 /opt/jboss/keycloak/bin/add-user-keycloak.sh -u patrick -p letmein
# list containers
docker ps -aq
# e.g. 5be9949528f4
# restart the container
docker restart 5be9949528f4

Configure OIDC (OpenID Connect)

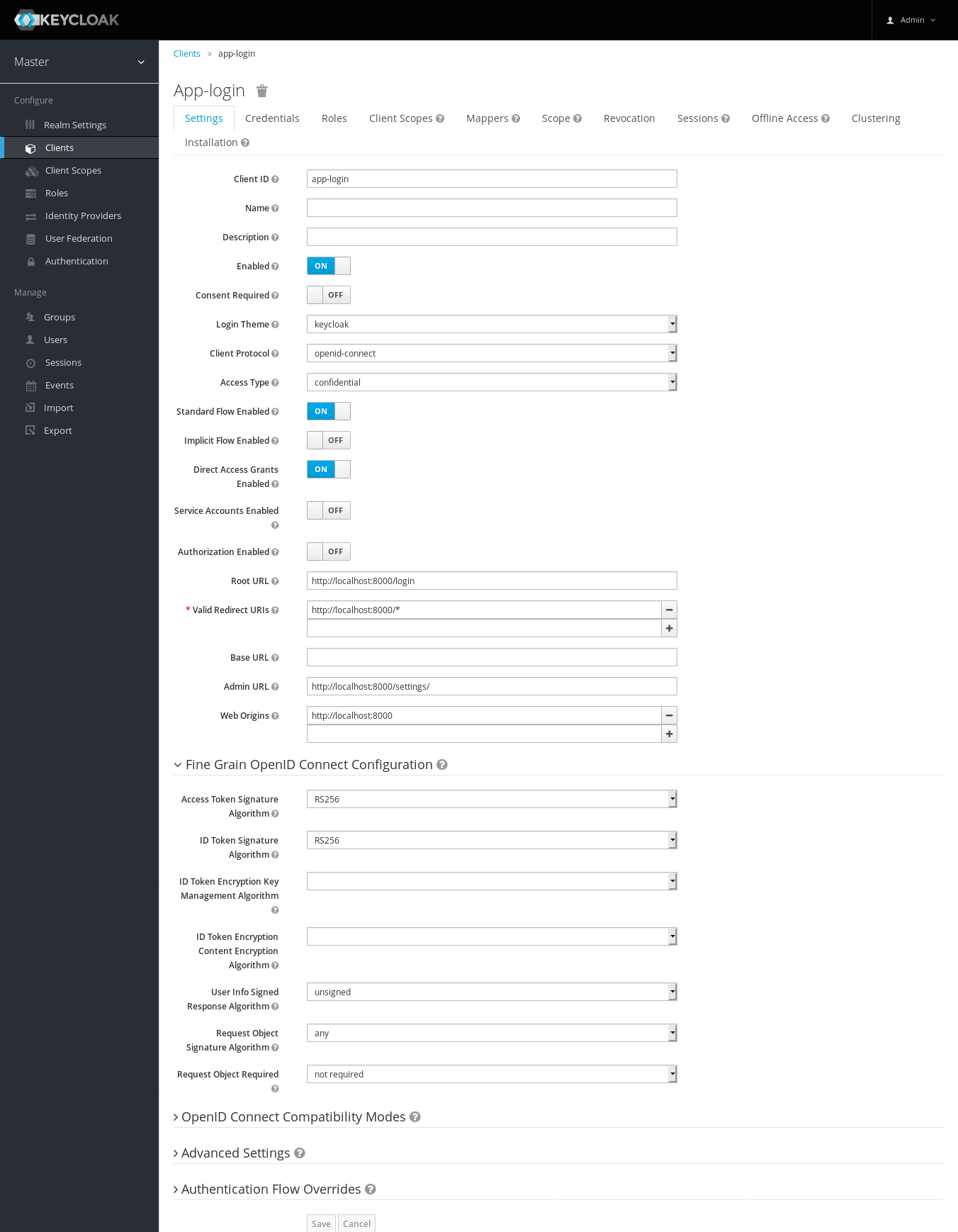

Configure, Clients…

  • Client ID (e.g. app-login),

  • Client Protocol: openid-connect

  • Access Type: confidential

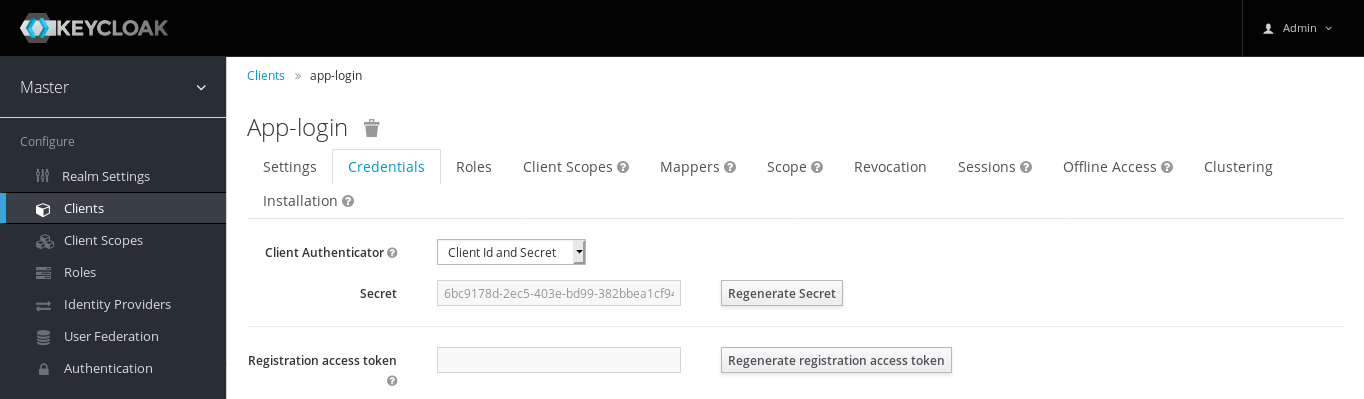

  • Click on the Credentials tab to get the Secret…

../../../_images/keycloak-clients.png ../../../_images/keycloak-clients-credentials.png ../../../_images/keycloak-users.png

Client

For the client, you need the Keycloak Server OIDC URI Endpoints. e.g. for the master realm, lookup this URL to find the endpoints:

https://localhost:8443/auth/realms/master/.well-known/openid-configuration

e.g.

Here is a sample .private file for a Django project using https://mozilla-django-oidc.readthedocs.io/

set -x OIDC_OP_TOKEN_ENDPOINT "https://localhost:8443/auth/realms/master/protocol/openid-connect/token"
set -x OIDC_OP_AUTHORIZATION_ENDPOINT "https://localhost:8443/auth/realms/master/protocol/openid-connect/auth"
set -x OIDC_OP_JWKS_ENDPOINT "https://localhost:8443/auth/realms/master/protocol/openid-connect/certs"
set -x OIDC_OP_USER_ENDPOINT "https://localhost:8443/auth/realms/master/protocol/openid-connect/userinfo"
set -x OIDC_OP_LOGOUT_URL_METHOD "https://localhost:8443/auth/realms/master/protocol/openid-connect/logout"

set -x OIDC_RP_CLIENT_ID "app-login"
set -x OIDC_RP_CLIENT_SECRET "6bc9178d-2ec5-403e-bd99-382bbea1cf94"
set -x OIDC_VERIFY_JWT "True"
set -x OIDC_RP_SIGN_ALGO "RS256"
# certificate is generated locally
set -x OIDC_VERIFY_SSL "False"

Tip

Using the default configuration will only work if the user in Keycloak has the same email address as the Django user.
